Two buffs · No center plates
Choose 3-inch Insertable Double-Buff Safety Flanges to mount two compatible wheels without an arbor extension.
Double-buff · SKU LRSRPDBSF3Descripción
Bridas de seguridad de doble pulido insertables de 3" para pulido de alta velocidad (para ruedas de pulido SIN placas centrales)

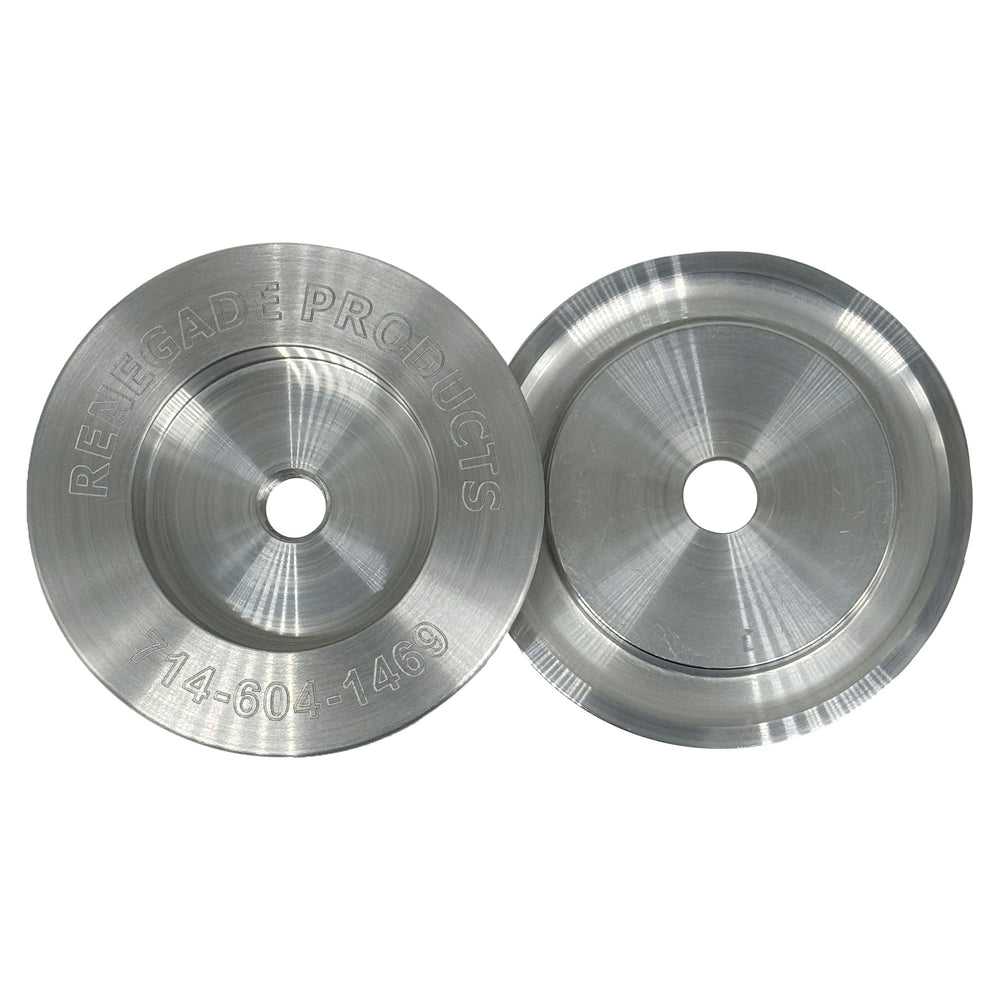

Estas bridas miden aproximadamente 4-3/4" de ancho, se ajustan a un anillo de sujeción de 3" y tienen un hueco/hendidura de 3/4".
¿Qué son las bridas de seguridad?
Las bridas de seguridad se utilizan durante el pulido a alta velocidad con nuestros discos de pulido Airway . Su función es reducir la posibilidad de deformación del plato central del disco. Además de proteger contra la deformación, las bridas de seguridad también ayudan a mantener el disco firmemente sujeto.
¿En qué se diferencian estas de otros juegos de bridas de seguridad?
Estas bridas de seguridad están diseñadas para permitir el montaje simultáneo de dos (2) ruedas de pulido Airway sin necesidad de una extensión del eje. Esto permite cubrir una mayor superficie a la vez, logrando un corte y/o coloración más eficiente en sus productos de pulido de metales. Véase a continuación:
¿Cómo utilizo estas bridas de seguridad?
Fije las bridas de seguridad a cada lado de la rueda de pulido de conductos de aire. Para ello, coloque la brida más delgada (con la muesca del eje en la parte posterior) en el eje de la amoladora y coloque las dos ruedas de pulido encima, asegurándose de que giren en la dirección correcta. Finalmente, coloque la brida más gruesa (con la rosca profunda) a través de las placas centrales de las ruedas de pulido para fijarlas. Consulte el siguiente vídeo para obtener consejos sobre cómo montar las bridas y las ruedas en su máquina.
Mount two buffs. Cover more surface.
- For two Airway Buffing Wheels without center plates
- Fits a 3-inch clinch ring; approximately 4¾ inches across
- Double-buff design mounts two wheels without an arbor extension
2 buffsside-by-side wheel setup
3-inchclinch-ring fit
Approx. 4¾ in.flange outside diameter
¾-inchrecess / indentation
A WIDER BUFFING SETUP
Two airway buffs. One matched flange set.
These Insertable Double-Buff Safety Flanges are engineered to mount two Airway Buffing Wheels at a time without an arbor extension. The side-by-side setup lets you cover more surface area during the cut and color stages of metal polishing.
For wheels without center plates.
Match both wheels to the 3-inch clinch-ring fit and confirm the complete setup is compatible with your tool.
FLANGE SELECTION GUIDE
Choose the setup for the job
This set is designed for a double-buff configuration. Match the wheel count, center style and mounting dimensions before use.
One buff · No center plate
For a single centerless airway buff, choose the corresponding single-buff Insertable Safety Flanges.
View single-buff insertable flanges →The 3-inch designation refers to the clinch-ring fit, not the buffing-wheel diameter. The flanges measure approximately 4¾ inches across.
MOUNTING AT A GLANCE
Shallow flange. Two buffs. Deep flange.
The shallow flange and deeply recessed threaded flange have different roles. Follow the product’s mounting sequence and check wheel rotation before use.
ACTUAL TWO-WHEEL SETUP
A wider working face
Two wheels sit side by side, held together by the matched shallow and deep flange components.
Confirm shaft fit, tool clearance and secure engagement before polishing. Follow the tool, wheel and hardware operating ratings.
- 01Fit the shallow flange
Disconnect the tool from power. Place the shallower flange, identified by the arbor notch on the back, onto the grinder’s shaft.
- 02Position both buffs
Place the two compatible centerless buffing wheels over the flange. Check that both wheels will rotate in the appropriate direction.
- 03Secure the deep flange
Fit the thicker flange with the deeply recessed threading through the wheel centers and fasten the assembly according to the mounting instructions.
Use the mounting video below for the product-specific setup. The two-wheel design does not increase the permitted operating speed of any component.
KNOW YOUR FLANGE DIMENSIONS
Match the ring, recess and tool
3-inch clinch ring
The mounting fit specified for these double-buff flanges.
Approximately 4¾ inches across
The outside flange diameter; this is separate from the buff diameter.
¾-inch recess / indentation
The product’s stated recessed depth. Verify the complete assembly fits your machine.
DOUBLE-BUFF IN USE
More surface coverage for cut and color
The paired wheels create a wider working face for your metal-polishing process. Choose the wheel treatment and compound appropriate for the metal and polishing stage.
WATCH THE INSTALLATION GUIDE
See how the double-buff flanges mount
Watch the product-specific installation tips for mounting the flanges and both wheels to your machine.
DOUBLE-BUFF SAFETY FLANGE FAQ
Know your setup before you start
What makes these double-buff flanges different?
They are engineered to mount two Airway Buffing Wheels at the same time without an arbor extension, allowing more surface coverage during the cut and color stages.
Do the wheels need center plates?
No. This product is designated for buffing wheels without center plates. Confirm both wheels have the appropriate 3-inch clinch-ring configuration.
What does the 3-inch size refer to?
It refers to the clinch-ring fit. The flanges measure approximately 4¾ inches across and have a ¾-inch recess or indentation. It is not the buffing-wheel diameter.
Which flange goes on first?
Start with the shallower flange with the arbor notch on the back. Position both wheels in the correct rotation direction, then fit the thicker flange with the deep recessed threading to secure the assembly.
Can I run the setup on any grinder?
Confirm the shaft, mounting engagement, wheel dimensions and tool clearance before use. Follow all component ratings; the lowest-rated component limits the assembly. The double-buff design does not make every grinder compatible.
BUILD YOUR DOUBLE-BUFF SETUP
Match the flanges. Mount both buffs.
For compatible centerless wheels with a 3-inch clinch ring.
